SPF2000-H · 2 kW · 12 VDC

Power that stays with you.

Single-phase off-grid solar inverter with pure sine wave output, integrated MPPT charging, and a 12 VDC battery architecture—for backup power, solar self-consumption, and independent living.

Explore Performance

Pure sine wave output Auto 50/60 Hz sensing Optional monitoring

⚡ 2000 WRated output power

☀ 30–80 VDCMPPT operating range

0 W Rated output power

0 VDC Battery system

0 W Recommended PV array power

30–80 VDC MPPT voltage range

0 VA Surge power

0 ms Typical transfer time

01 / PURE SINE WAVE

Clean power for sensitive electronics.

Pure sine wave output at 230 VAC ±5% delivers stable power for electronics, appliances, and everyday loads.

2000 W continuous output4000 VA surge powerPeak efficiency 93%Auto frequency sensing 50/60 Hz

02 / HIGH-VOLTAGE MPPT

Harvest more from every hour of sunlight.

The integrated MPPT controller manages a solar array up to 1500 W, with an operating range of 30–80 VDC and a maximum open-circuit voltage of 102 VDC.

MPPT efficiency up to 98%Single independent trackerSolar charging current 100 A*Utility / solar priority modes

03 / 12 V BATTERY

A 12 V core, built for independence.

Compatible with lithium and lead-acid batteries, with an engineering-adapted 12 VDC architecture and adjustable AC charging.

Lithium / Lead-acidAC charging up to 60 A*Transfer time 10 msStandalone operation, no parallel mode

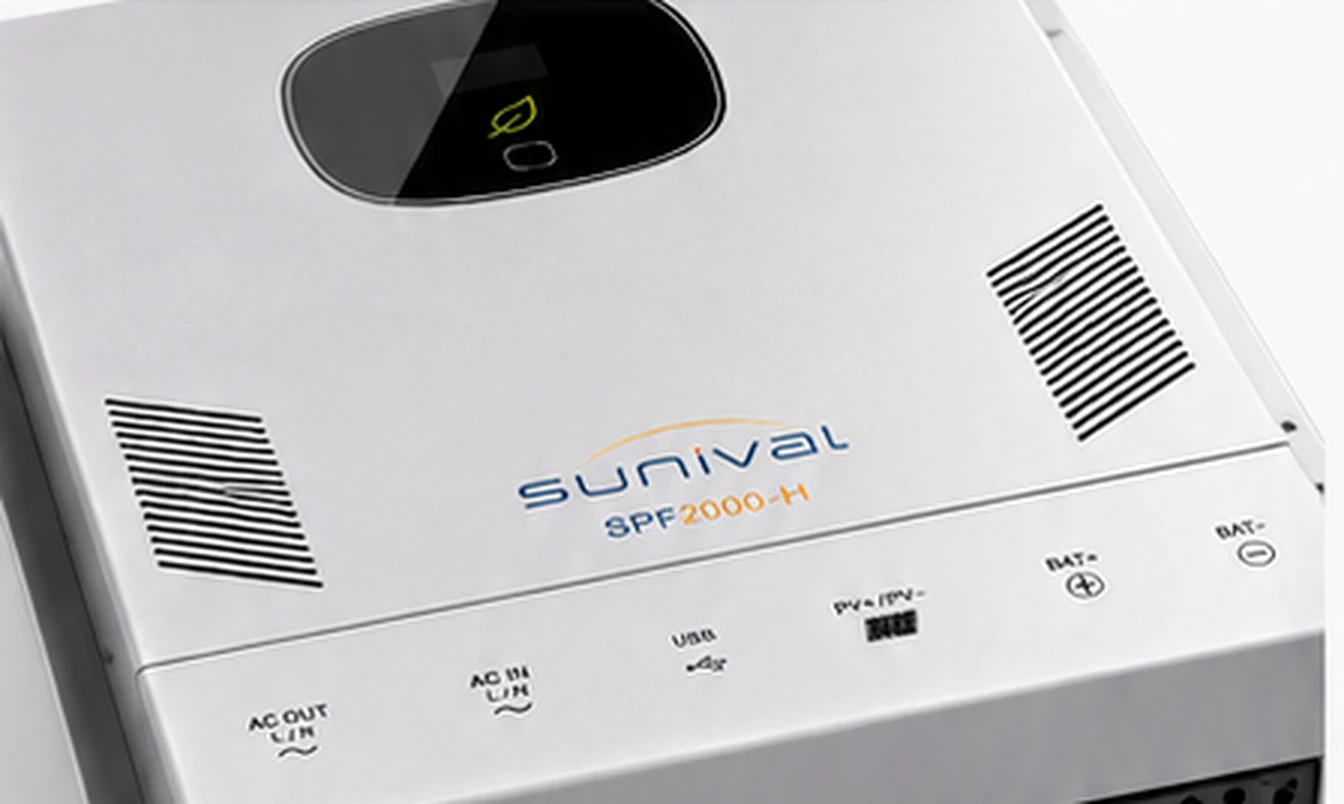

Close-up of the Sunival inverter panel and connections — **Simple control. Clear connections.**AC OUT · AC IN · USB · PV · BATTERY

Functional design

Every detail serves reliable energy.

From pure sine wave output to clearly labeled ports and integrated charge control, every element is designed for transparent installation and dependable operation.

Pure sine wave output

Clean, stable electricity for sensitive loads and household appliances.

High-voltage MPPT charger

Manages a solar array up to 1500 W with a broad operating range.

Flexible battery compatibility

Supports lithium and lead-acid batteries in a 12 VDC system.

Efficiency

More output, less waste.

With peak inverter efficiency of 93% and MPPT efficiency up to 98%, the topology converts solar energy into usable power effectively.

93%

↯

230 VAC

Regulated output with a ±5% tolerance in battery mode.

⌁

102 VDC Max Voc

A practical voltage headroom for modern solar string design.

◉

Optional Wi‑Fi / GPRS

Ready for remote monitoring and control with an optional communication module.

1×

Single-unit operation

Simple, reliable architecture with no parallel capability.

Energy flow

Solar, battery, home. In sync.

Intelligent coordination between solar generation, energy storage, and load demand for backup power and solar self-consumption.

☀

Solar array

PV input with integrated MPPT for efficient energy harvest.

1500 W

Inverter at the center of the energy flow

▣

Battery & loads

12 V storage and pure sine wave output for home or workplace loads.

12 VDC

The 100 A* solar charging current and 60 A* AC charging current values are engineering-adapted for the 12 V version and must be validated against final electrical, thermal, BMS, and protection design before production.

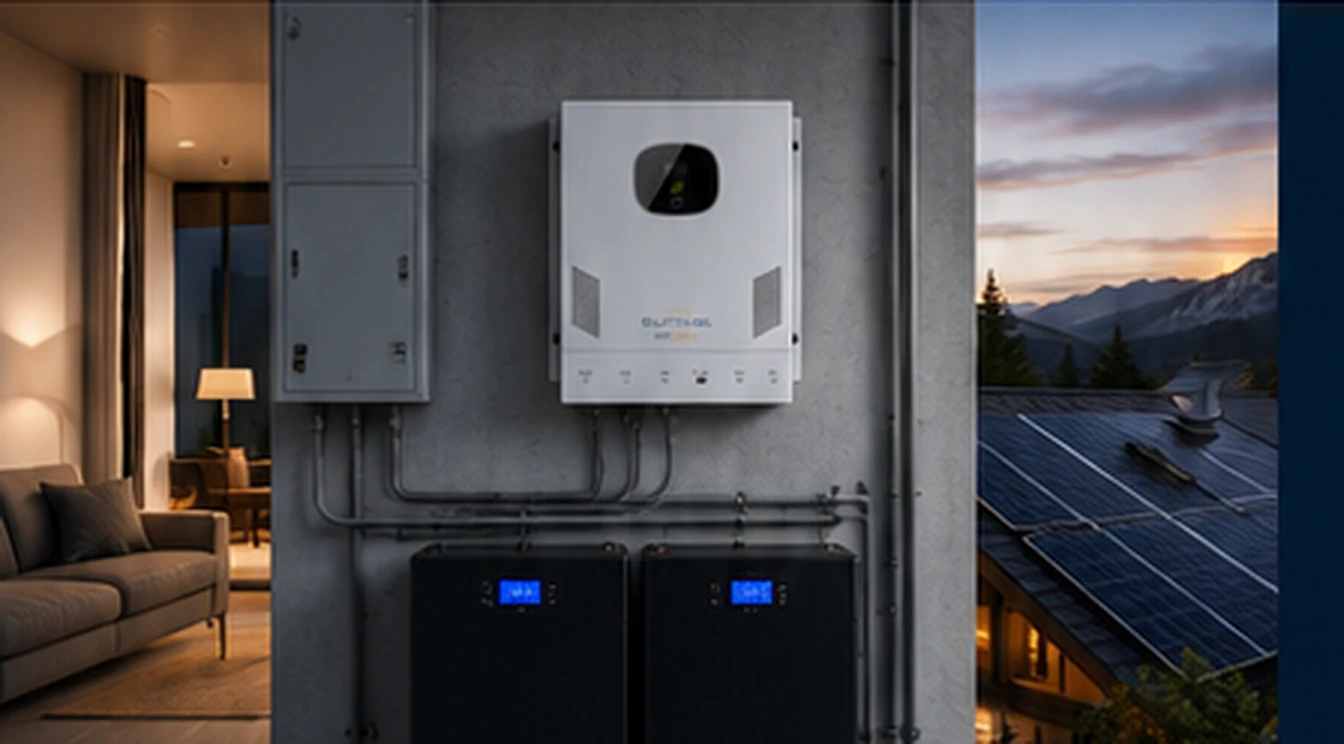

Sunival inverter installed in a solar-equipped home

Built for real life

Designed for energy independence.

From backup power to fully off-grid living, SPF2000-H delivers reliable energy for homes, villas, cabins, workshops, and remote sites.

⌂Backup powerKeeps essential equipment running during outages.

☀Solar self-consumptionUse more of the energy you generate on-site.

↔Easy integrationUtility input, PV, battery, and AC output in one device.

Technical specifications

Precise specifications. Confident decisions.

Rated power2000 VA / 2000 W

Battery12 VDC

Protection ratingIP20

Net weight8 kg

Nominal battery voltage12 VDC

Battery typeLithium / Lead-acid

Rated power2000 VA / 2000 W

Parallel capabilityNo

AC voltage regulation (battery mode)230 VAC ±5% @ 50/60 Hz

Surge power4000 VA

Peak inverter efficiency93%

WaveformPure sine wave

Transfer time10 ms typ. / 20 ms max.

Recommended / maximum PV array power1500 W

MPPT operating voltage range30–80 VDC

Maximum PV open-circuit voltage102 VDC

Independent MPP trackers / strings per tracker1 / 1

Maximum solar charge current100 A*

Maximum MPPT efficiency98%

Maximum AC charge current60 A*

Nominal AC input voltage230 VAC

Selectable AC input range170–280 VAC (PC) / 90–280 VAC (Home)

Input frequency50 / 60 Hz, auto-sensing

Protection ratingIP20

Dimensions (W × H × D)315 × 400 × 130 mm

Net weight8 kg

Operating temperature0 °C to 55 °C

Storage temperature−15 °C to 60 °C

Relative humidity5% to 95%, non-condensing

Maximum altitude< 2000 m

12 V engineering note: Charge-current values marked with * have been scaled from the 24 V reference platform to preserve approximate charging power at 12 V. Final production ratings remain subject to electrical, thermal, BMS, cabling, and protection validation.

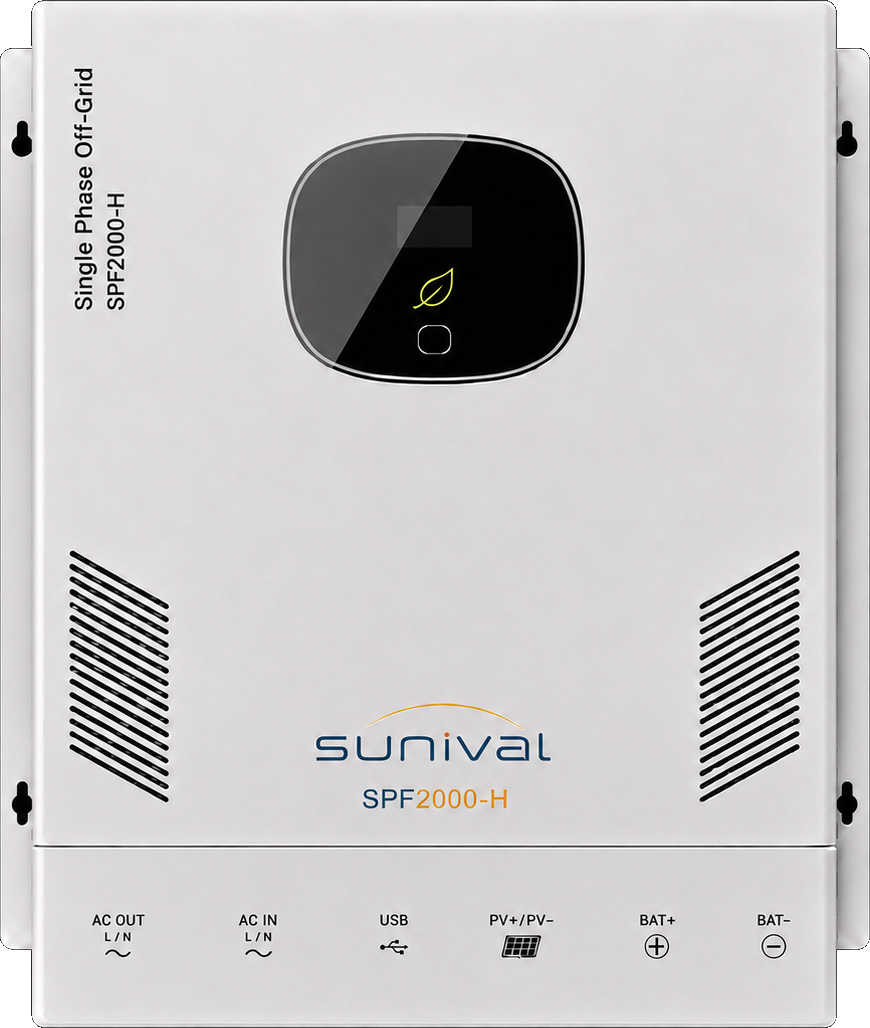

Sunival SPF2000-H

Independent power, engineered intelligently.

Open the request form for sales information, quotation support, or review of the final specification set. Datasheet and product label files are available as separate downloads.
